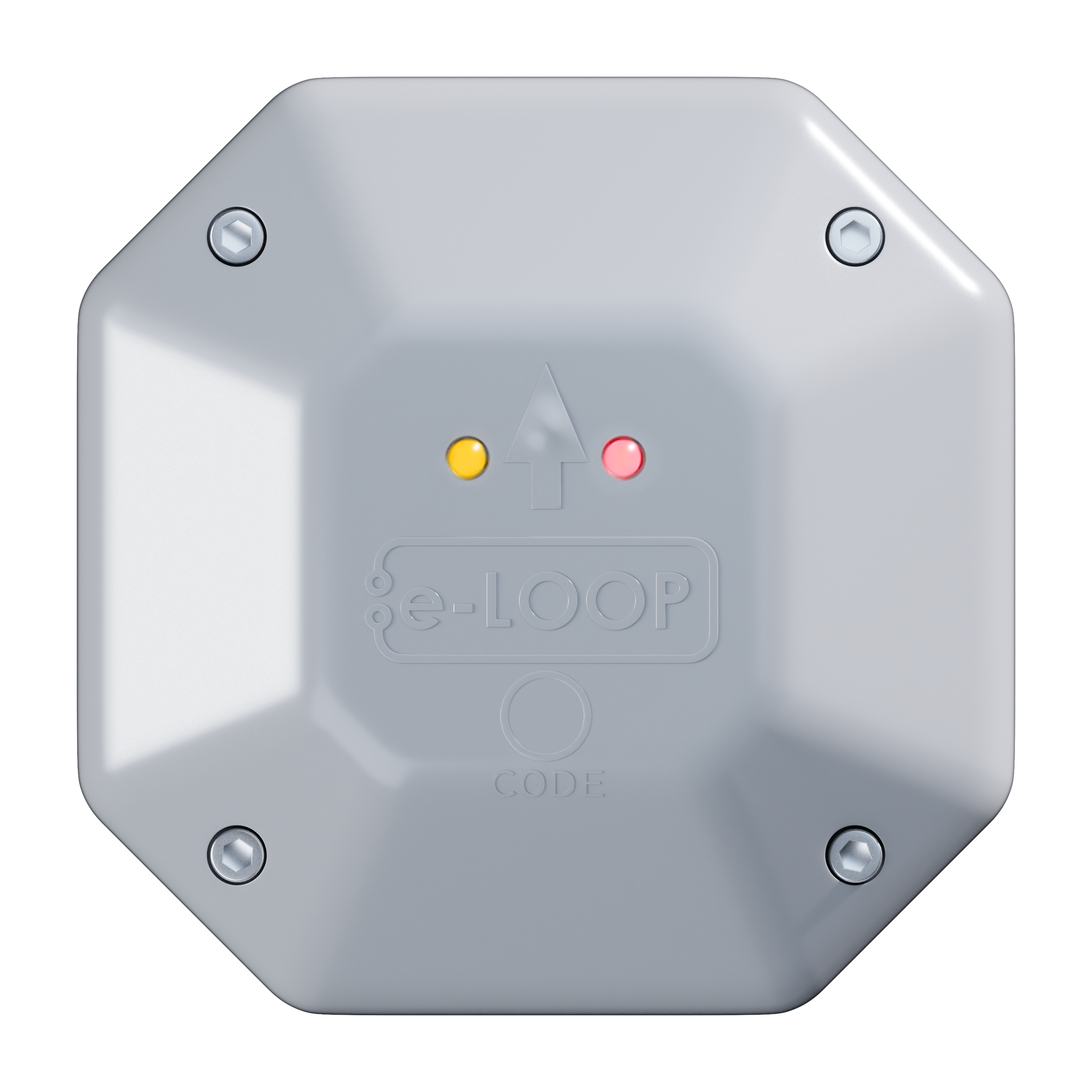

e-LOOP MINI

The e-Loop Mini is an exceptional wireless vehicle detection system, purpose-built for low-traffic, single residential or domestic settings. Its compact size and easy surface-mount design allow for seamless integration into driveways without compromising aesthetics.

Operating entirely wirelessly, the e-Loop Mini connects directly to existing gate controllers via a wireless transmitter—eliminating the need for complex wiring or invasive installation. This advanced solution offers homeowners a reliable, hassle-free way to automate their entrances.

Now available with Presence Mode, the e-Loop Mini intelligently keeps gates open when longer vehicles are detected moving through the area.

  • Quick and easy installation

  • Uses standard 1.5V AA Lithium batteries (included)

  • Up to 4 years battery life in Exit Mode, and up to 3 years in Presence Mode

  • Small, compact design: 120mm x 120mm x 30mm high

  • Static load capacity: 2.5 tonnes (2500kg)

  • Wireless range: up to 50 metres/yards

  • High-security 128-bit encryption
